High Performance Degasification Transformer Oil Insulating Oil Filtration Machine
1.Made with advanced techniques and innovative designs, it is hailed as excellent in cost performance.
2.It is mainly used for purification of oil for high voltage and extra high voltage electric facilities, and mainly used for purify the oil used in ≤500kV electricity. and can increase oil's breakdown voltgae by at least 35KV at a time.
3.ZYD Series may include two types: regular closed type and trailer mobile type. It is suitable for oil treatment, vacuum oil injection, and cyclic hot-oil drying in the installation and maintenance of big transformers.
4.Besides,they can also be configured into three-stage high-vacuum oil purifiers to meet customer's greater needs for oil treatment.
Characteristics
1.Two separating house made by stainless steel. Oil flow by rotation in stereo evaporation to degas and dehydrate well.
2.The combination of axial fan and condenser make vapor from vacuum pump and roots pump into water, it can prolong time to change vacuum oil while meet emission standard.
3.Multiple Filter Housings With Cartridge Style Filter Elements, big filtering area to hold more particles.
4.Control system: IEC standard with each wire marked. tri-unity control to avoid wrong operation as lack-phase, wrong phase and overload.
5.Oil level in vacuum tank is controlled by photoelectric switch, which is flexible and accurate.
Treated oil data after the treatment
1. Water Content≤3PPm
2. Gas Content≤0.1%
3. Residual moisture: ≤3PPm
4. Particles: ≤1-5μm
5. Breakdown Voltage: ≥75kv
6. Cleanliness: ≤ NAS1638 5 class standards
In addition to filtering, purifying, and regenerating transformer oil, this machine can also be used for vacuuming and oiling the transformer.
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working Vacuum | Mpa | -0.08 ~-0.099 |
| Working Pressure | Mpa | ≤ 0.3 |
| Temp Range | ºC | 20 ~80 |
| Power Supply | | 380V, 50Hz, 3Phase( As per required) |
| Working Noise | Db | 60 - 80 (Depended on the configuation) |
| Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 |
| Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | | 198 |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 |
| AFTER TREATMENT |
| Dielectric Strength | KV | ≥ 75-85 |
| Water Content | PPM | ≤ 3 |
| Gas Content | % | ≤ 0.1 |
| Particle Size | μ | ≤ 3 |
| Cleanliness ≤NAS 1638 Grade 5 |
REXON After Sales Service
-We will help to arrange the transport and shipping for the machine to customer.
-We offer full set documents for customs clearance at customer's destination port.
-We will offer lifetime technical support for our equipment, free technical upgrade, free or chargeable spare parts supply, etc.
-We offer online service for customers 24 hours everyday. If you have any question while using our machine, you can contact us by online chat software, or by email, phone etc, we will get back to you very soon within 4 hours.
-We will also offer operation training for free in our factory and offer door-to-door service to send our engineer to your place for the machine's installation service and operation training if you need.
-Installation, Operation and Maintenance details will be in the operation manual booklet and videos which will be sent to you with machine.
-Rexon's guarantee time is two years for each of our equipment.
RECOMMAND PRODUCTS
For Insulating Oil (transformer oil, mutual inductor oil, valve oil and so on)
-Highly Effective Vacuum Oil Purifier
-Computer-Tested Highly Effective Vacuum Oil Purifier (ZY with oil tester)
-Mobile Type Multi-function Transformer Oil Treatment Machine
-Automatic Double-Stage Highly Effective Vacuum Transformer Oil Purifier
-Ultra-High Voltage Oil Regeneration Treatment
For Lubricant Oil (hydraulic oil, turbine oil, gear oil, diesel, heating oil and so on)
-Multi-function Lubricating Oil Purifier
-Highly Effective Vacuum Turbine Oil Purifier
-Hydraulic Regeneration Oil Purifier
-Coalescence-Separation Diesel Oil /Light Oil Purifier
-Centrifugal Vacuum Oil Purifier
-Phosphate Ester Fire-Resistant Oil Purifier
Other Kind Plants related:
-Highly Effective Vacuum Engine Oil Purification System
-Portable Oil Purifier
-Plate Pressure Oil Purifier
-Highly Effective Oil Filling Machine
-Small Portable Edible Oil Filtration Machine
-Transformer Oil BDV (Breakdown Voltage) Tester
|
|

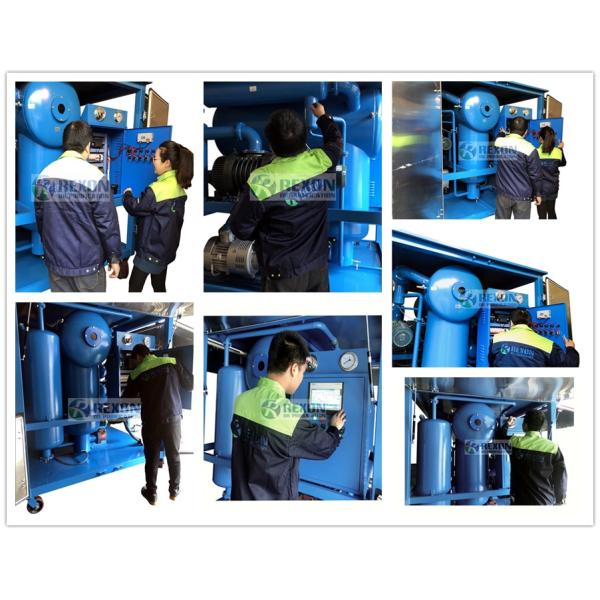

High Performance Degasification Transformer Oil Insulating Oil Filtration Machine Images
|
