Application:
ZYD double-stage vacuum insulating oil purifier is a creative design introducing domestic and international advanced technology. It is applied to process transformer oil and insulating oil from power plant, power station, electric power company, power transmission equipment, transformers, industrial and mining enterprises, especially suitable for on-site installation, maintenance and purifying high level new oil, or running oil from big power transmission and distribution equipment and transformers on national main power transformation grid, which is above 110-750kV. It can shorten the oil treatment period for transformer installation and maintenance.
Advantages:
According to the transformer oil change it is very economicUsed transformer oil can be brought up to the equivalent point of new oilTransformer within the moisture, sludge, acids and harmful gases to destroy and the insulation values will be higher than old. Transformer oil life is extended. As a result of the occurrence waste oil and disposal costs would have been zero. Waste oil has been blocked and prevented its negative given for the enviroment.
Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/h | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working vacuum | MPa | -0.08 ~ -0.099 |
| Working Pressure | MPa | ≤0.3 |
| Temperature Range | C | 20 ~ 80 |
| Power | | Three Phase 50Hz,380V (or as needed) |
| Working Noise | dB(A) | 70 | 70 | 70 | 75 | 75 | 75 | 75 |
| Heating Power | KW | 28 | 30 | 45 | 60 | 75 | 90 | 120 |
| Total Power | KW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 |
| Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 |
| Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 |
| Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
| Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 |
| Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 |
Table2 ZYD Oil Purifier after Treated Guarantee Value
| Item | Unit | After treatment |
| Breakdown Voltage | kV | ≥75 |
| Moisture content | PPM | ≤3 |
| Gas content | % | ≤0.01 |
| Impurity size | micron | ≤1 (no free carbon) |

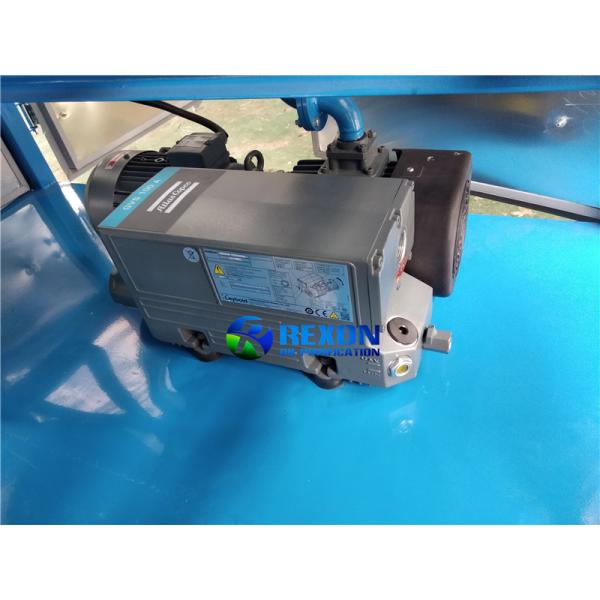

Germany Atlas Vacuum Pump
Rexon Engineer Test The Machine In Factory
