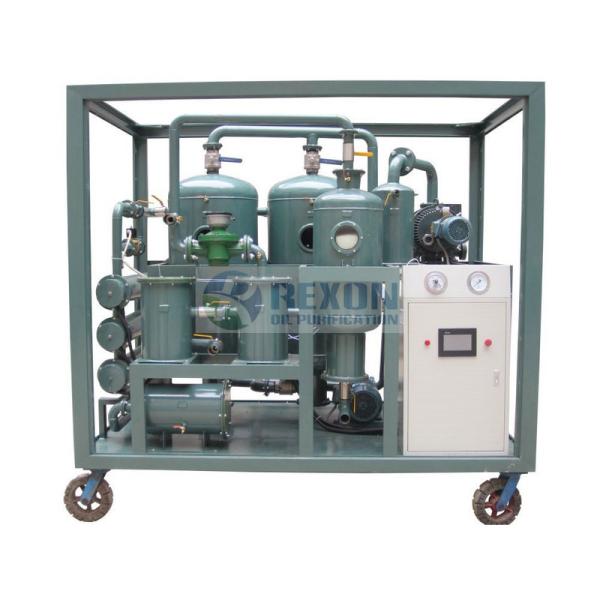

9000LPH Dielectric Transformer Oil Purifier Machine High Vacuum Thermostatically Heating

Fully Enclosed Type 9000LPH Dielectric Oil Purifier Machine for Onsite Transformer Oil Maintenance

Product Description:

As is well known the Transformer plays an important role in the generation, transmission and distribution of electrical energy. Under load the transformer, dissipates heat and the insulating oil acts as a coolant as well as an effective dielectric.

Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength. Also there are some waste impurities, gas contents in the transformer oil which destroy the oil’s quality.

REXON oil purifier is the most efficient and economical purification system.

This oil purification plant is applied to filter various of unqualified insulation oils including aging transformer oil specially for the power which is above 110KV, mutual inductor oil, switch oil and so on. Also it can inject the insulating oil into the transformers on-line.

Application:
Fully Enclosed Type 9000LPH Dielectric Oil Purifier Machine for Onsite Transformer Oil Maintenance , ZYD is special for filtering the used and old transformer oil, mutual oil, switch oil. Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machine's working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 80KV. It is very suitable for the large electric & insulation equipments.

Feature:
1. High vacuum: High point-Vacuum≤5pa Working-vacuum≤35pa
2. High absorption speed: Absorption speed power≥333L/Sr.
3. Duplex 3D stereo-evaporation, eliminating the liquid wat er quickly
4. Distinctive removing impurity system which filters the impurity through double FH trapezoidal network and absorbs the impurity by high polymer without the mechanical power.
5. Carbon fiber infrared heating system that can have the oil contain zero sum of ethyne after the treatment.
6. Especially applied to vacuum filling oil and drying for power transmission equipments which power are over 110KV.
7. Any insulating oil can be treated on-line at the working site.

Advantage:
Fully Enclosed Type 9000LPH Dielectric Oil Purifier Machine for Onsite Transformer Oil Maintenance , Comparing with the single-stage vacuum oil purifier, this machine dewater, degas and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.

Technical Parameters:

Transformer oil purifier ZYD brings?
Series ZYD Double-stage vacuum transformer oil purifier can remove the water, gas and impurities in insulation oil high-efficiently, increasing the pressure force and quality of oil, make the oil limiting voltage-withstand value much higher and make sure the electric device running safely. The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

The oil technical data after treatment:
1. Gas content is less than 0.1%
2. Impurity size is less than 1μm without free carbon

3. Water content is less than 3 part per million
3. Oil dielectric strength (breakdown voltage) is more than 75KV
4. Acidity value is less than 0.01 mg KOH/g
5. Dielectric loss factors at 90℃ is less than 0.001
