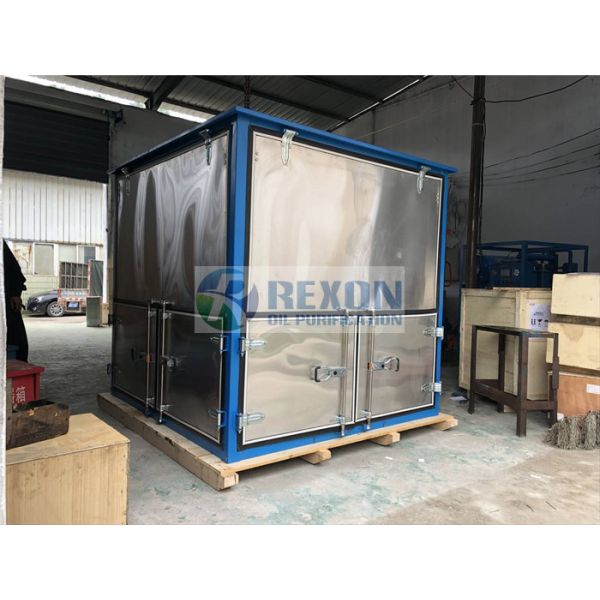

Transformer Oil Purifier High Efficiency Vacuum Transformer Oil Purifier Machine for Power Plant Maintenance

Chongqqing Rexon Oil Purification Co., Ltd
Contact Now

Transformer Oil Purifier High Efficiency Vacuum Transformer Oil Purifier Machine for Power Plant Maintenance

Brand Name : REXON

Model Number : TYA-100(6000LPH)

Certification : CE, ISO, SGS, CCC

Place of Origin : CHONGQING, CHINA

MOQ : 1SET

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500SETS/MONTH

Delivery Time : 1 WEEK

Packaging Details : Wooden Cases for Standard Export

Function : Hydraulic Oil Filtration

Power Data : 380VAC, 3Phase, 50HZ or As required

Capacity : 6000LPH

Color : Blue, White, Green, Grey, Yellow, ETC.

Work Principle 01 : Half Auto Operation

Work Principle 02 : Vacuum Oil Dehydration

Work Principle 03 : Multi-Stage Oil Filtering

Work Principle 04 : Thermostatically Heating

Contact Now

Transformer Oil Purifier High Efficiency Vacuum Transformer Oil Purifier Machine for Power Plant Maintenance


Transformer Oil Purifier High Efficiency Vacuum Transformer Oil Purifier Machine for Power Plant Maintenance
Technical Parameters:

Item Unit TYA-10 TYA-20 TYA-30 TYA-50 TYA-100 TYA-150 TYA-200 TYA-300
Flow rate L/Hr 600 1200 1800 3000 6000 9000 12000 18000
Vacuum degree Mpa -0.06 ~ - 0.095
Working Pressure Mpa ≤0.4
Temperature Degree 0 ~ 100
Power Supply 380V,3phase, 50HZ (or as required by customer)
Working noise DB (A) ≤75 ≤75 ≤75 ≤78 ≤78 ≤78 ≤80 ≤82
Electric heating Power KW 18 18 24 30 54 72 90 120
Total electric Power KW 19.3 19.3 25.65 32 57.1 79 98 130
Inlet (outlet) Caliber mm Ф25 Ф25 Ф25 Ф32 Ф42 Ф50 Ф50 Ф60
Size mm

1260
x900
x1500

1260
x900
x 1600

1500
x1050
x1650

1600
x1150
x1700

1750
x1250
x1800

1900
x1600
x1950

1900
x1700
x2000

2100
x1700
x2100

Weight Kg 450 550 600 750 850 1000 1200 1500
AFTER TREATMENT
Moisture (water content) ≤ 50 PPM
Gas Content ≤0.1%
Impurities Degree (Filtration precision) ≤1 ~ 5 micron (no free carbon)
Demulsification New oil≤15min, running oil≤30mi
Cleanliness ≤NAS 1638 Grade 6


Transformer Oil Purifier High Efficiency Vacuum Transformer Oil Purifier Machine for Power Plant Maintenance
Our Hydraulic Oil Filtration Unit and Oil Maintenance Machines can bring you:
→Purifying your contaminated hydraulic oil to be new
→Maintaining your hydraulic oil always in clean status
→Save your used oil replacement cost
→Solve your waste oil disposal problem
→Guarantee your machinery and equipment working normally with qualified oil
→Protect your machinery and equipment to not be damaged from contaminated oil
→Reduce your maintenance time, energy and invest on transformers and power plant
→Prolong your machinery and equipment lifetime and save maintenance cost
→Bring a green oil ideal to the world and save oil energy for all of our generations

Application:
Transformer Oil Purifier High Efficiency Vacuum Transformer Oil Purifier Machine for Power Plant Maintenance is applied to recover and purify contaminated hydraulic oil which is used as lube oil, mechanical oil, coolant oil, gear oil, heat treatment oil and so on. REXON Vacuum Hydraulic Oil Purification Machine can fastly remove all contamination like moisture, partilces, air etc from used hydralic oil, and make oil to be new oil standard, and can be used again.
Features:
1.Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.
2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
3.Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.)
4. Automatic backwashing system, improving working efficiency
5. Advanced medium cooling system
6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:
Transformer Oil Purifier High Efficiency Vacuum Transformer Oil Purifier Machine for Power Plant Maintenance contains so low emulsification value, few water content and impurities that it can be used repeatedly in the highly precise hydraulic lubricating equipment at home and abroad. This series can fast degas, dewater, and remove the impurity and the volatile matter (for example ethyl alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, augments the flash point and improves the operational performance. Guaranteed the hydraulic system and the dynamic system, the lubrication system normal operation, so the machine is suit for many lines, such as the mine, metallurgy, electric power, transportation, manufactures and so on.
Transformer Oil Purifier High Efficiency Vacuum Transformer Oil Purifier Machine for Power Plant Maintenance
